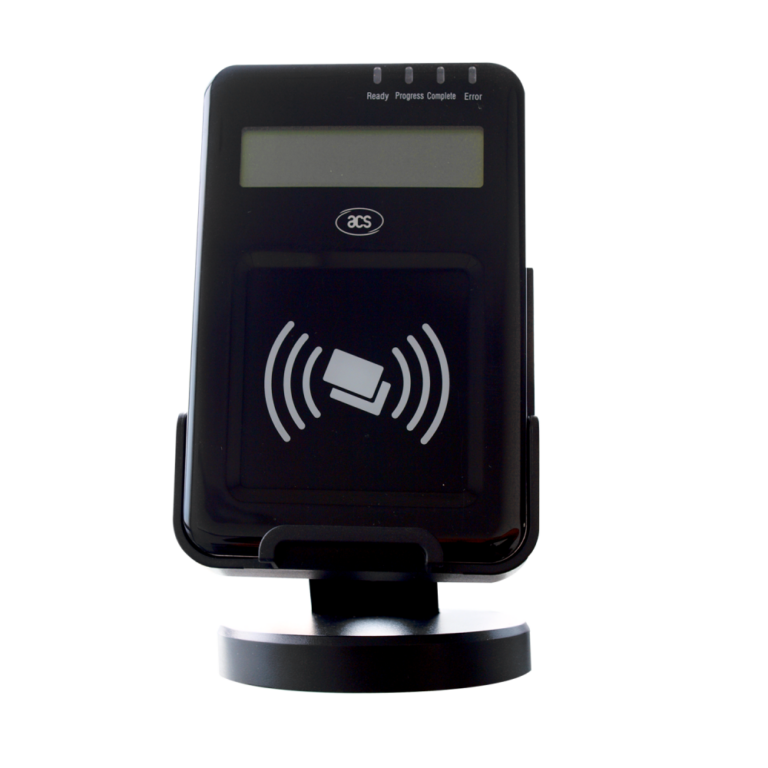

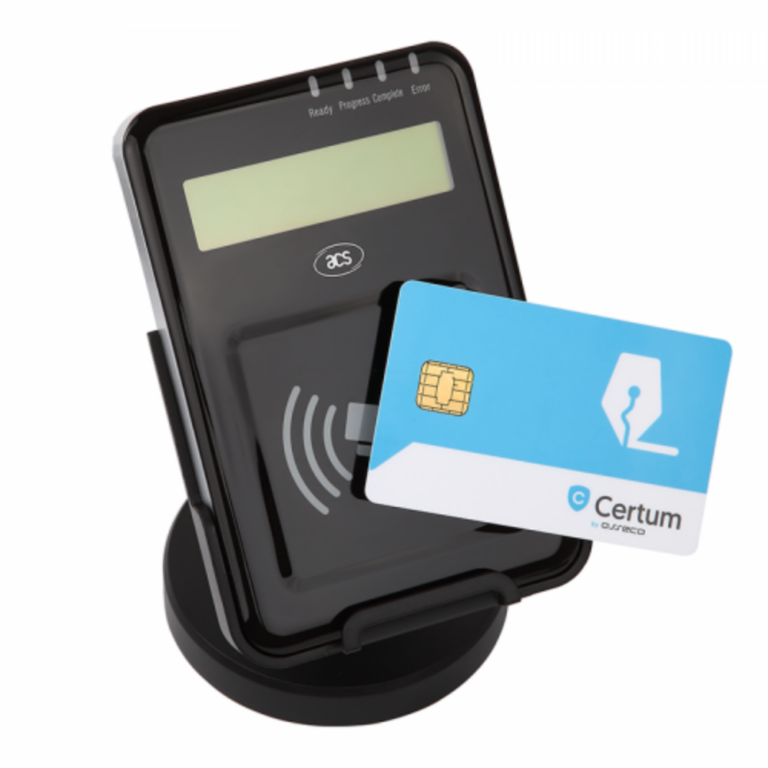

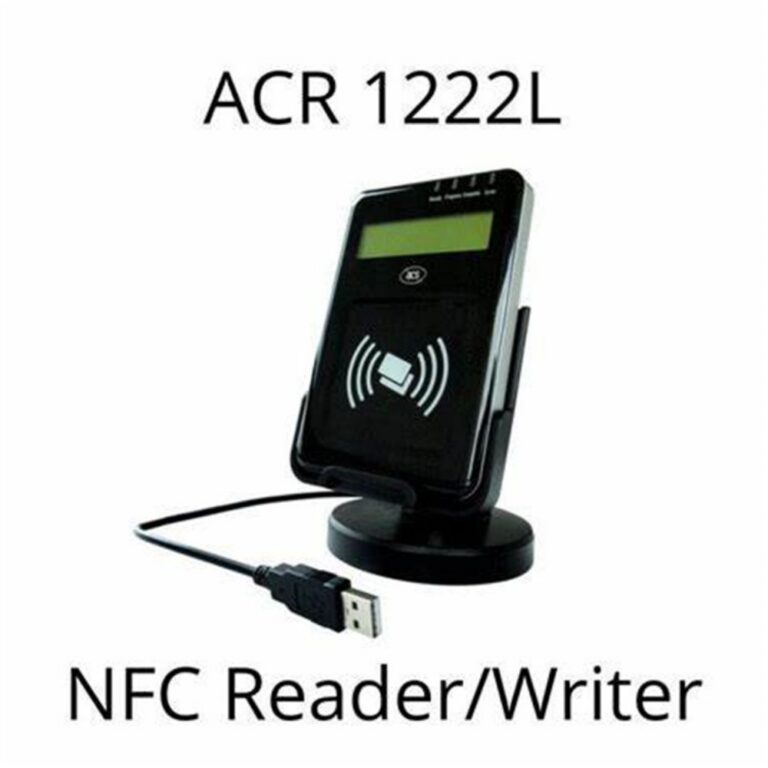

ACR1222L RFID NFC Reader Smart Card Reader
User-friendly ACR1222L USB NFC reader/writer. Easily interact with NFC devices. Perfect for applications needing quick NFC access.
The ACR1222L: A PC-Linked NFC Reader with LCD Display, Supporting a Broad Range of ISO14443 Cards and NFC Tags
Step up your PC’s capabilities with the ACR1222L, a USB-connected NFC Contactless Reader that includes an LCD screen. This model is engineered to interact with ISO14443 Type A and B cards, as well as Mifare, FeliCa, and all four classifications of NFC tags.zable platform.
Technical Specifications:
| Physical Characteristics | |
|---|---|
| Dimensions (mm) | Main Body: 133.5 mm (L) x 88.5 mm (W) x 21.0 mm (H) With Stand: 158.0 mm (L) x 95.0 mm (W) x 95.0 mm (H) |
| Weight (g) | Main Body: 173 g With Stand: 415 g |
| USB Interface | |
| Connector Type | Standard Type A |
| Protocol | USB CCID |
| Speed | USB Full Speed (12 Mbps) |
| Power Source | From USB Port |
| Cable Length | 1.5 m, Fixed |
| Contactless Smart Card Interface | |
| Standard | ISO/IEC 18092 NFC, ISO 14443 Type A & B, MIFARE®, FeliCa |
| Protocol | ISO 14443-4 Compliant Card, T=CL MIFARE® Classic Card, T=CL ISO18092, NFC Tags FeliCa |
| SAM Card Interface | |
| Number of Slots | 3 Standard SIM-sized Card Slots |
| Standard | ISO 7816 Class A (5 V) |
| Protocol | T=0; T=1 |
| Built-in Peripherals | |
| LCD | Graphical LCD with Yellow-Green Backlight Resolution : 128 x 32 pixels Number of Characters: 16 characters x 2 lines |
| LED | 4 single-color: Green, Blue, Orange and Red |
| Buzzer | Monotone |
| Other Features | |
| Firmware Upgrade | Supported |
| Certifications/Compliance | |
| Certifications/Compliance | ISO 18092 ISO 14443 ISO 7816 (SAM Slot) USB Full Speed PC/SC CCID VCCI (Japan) KC (Korea) Microsoft® WHQL CE FCC RoHS REACH |
| Device Driver Operating System Support | |
| Device Driver Operating System Support | Windows® Linux® MAC OS® Solaris Android™ |
Frequently Asked Questions (FAQs)
Q: What kind of devices are compatible with the ACR1222L?
A: The ACR1222L is compatible with any nfc device, including PCs, smartphones and tablets running android and ios through available SDKs.
Q: Does the ACR1222L support read and write of NFC tags?
A: Yes, the ACR1222L supports both read and write nfc tags. The nfc tools can read and write to various tags and cards.
