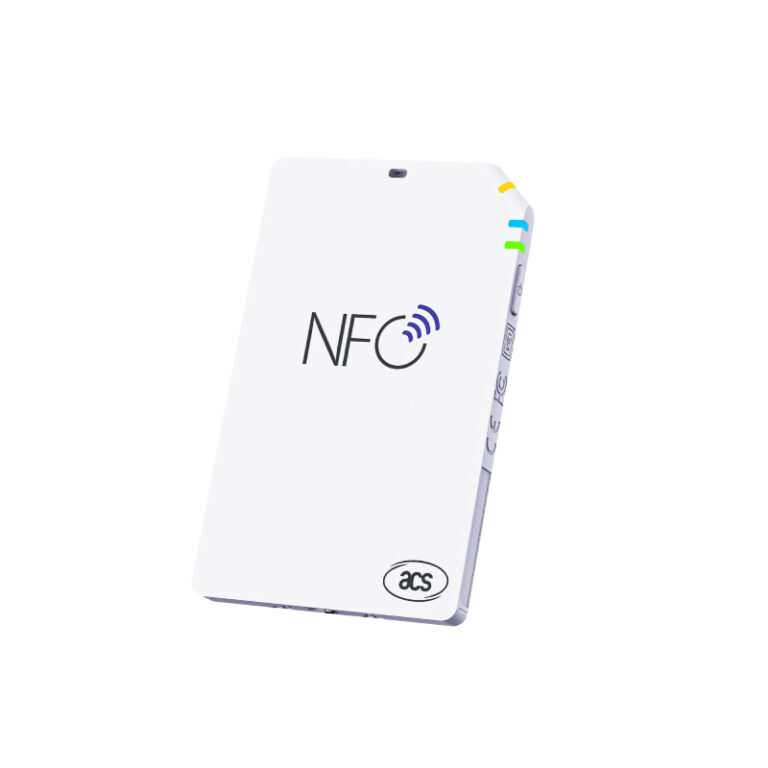

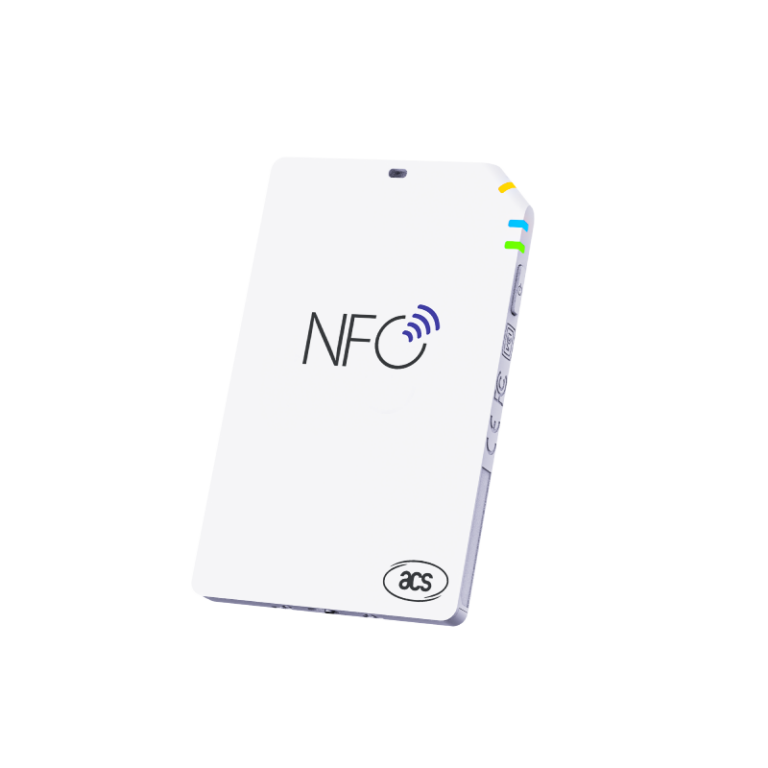

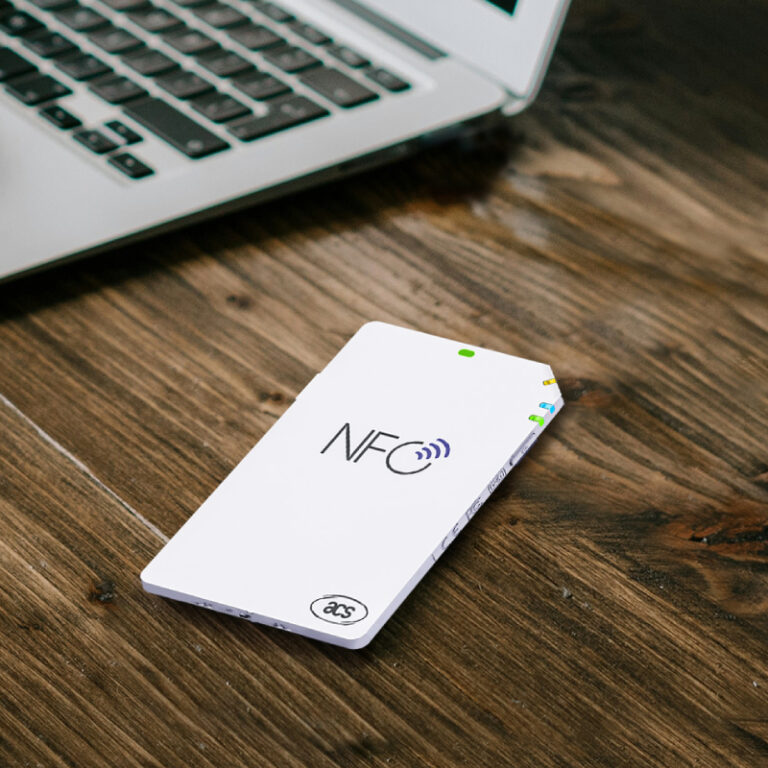

ACR1555U Bluetooth RFID NFC Reader Writer
Wireless NFC reader/writer. Connects via Bluetooth. Reads/writes NFC data on the go. Compact and portable design.
The ACR1552U USB NFC Reader IV is a state-of-the-art smart card reader that adheres to the CCID and PC/SC compatibility standards, built upon the robust 13.56MHz contactless technology platform. This reader is designed for ease of use with a plug-and-play feature, and it offers rapid data transfer capabilities at speeds of up to 848 kbps. Additionally, it comes with an integrated SAM slot to bolster the security of contactless transactions with key diversification and mutual authentication processes.
Technical Specifications
| Physical Characteristics | |
|---|---|
| Dimensions (mm) | 93 mm (L) × 58 mm (W) × 6 mm (H)94.1 mm x 60.2mm x 9.0 mm (with Card Holder) |
| Weight (g) | 31.5 g ± 1.0 g (Card Reader)39.7 g ± 1.0 g (with Card holder)23.9 g ± 5.0 g (USB cable) |
| Bluetooth Interface | |
| Protocol | Bluetooth® (Bluetooth Low Energy / Bluetooth 5.2)Bluetooth AES-128 encryption |
| Power Source | Rechargeable Lithium-ion Battery (charging through USB) |
| Speed | 1 Mbps and 2 Mbps |
| USB Interface | |
| Protocol | USB CCID |
| Connector Type | USB Type-C |
| Power Source | From USB Port |
| Speed | USB Full Speed (12 Mbps) |
| Cable Length | 1m, Detachable |
| Contactless Smart Card Interface | |
| Standard | ISO/IEC 18092 NFCISO 14443 A&BMIFAREFeliCaISO 7816 Class A, B and C |
| Protocol | ISO 14443-4 Compliant Card, T=CLMIFARE® Classic Card, T=CLISO 15693 ISO 18092FeliCa |
| SAM Card Interface | |
| Number of Slots | 1 |
| Standard | ISO 7816 Class A, B and C (5V, 3V, 1.8V) |
| Protocol | T=0; T=1 |
| Built-in Peripherals | |
| LED | Bi-colors LED ( Red and Green) x 1, Blue LED x 1 and Orange LED x 1 |
| Buzzer | Monotone |
| Other Features | |
| Other Features | Other NFC Features:Smart Card Reader/WriterKeyboard EmulationCard Emulation |
| Firmware Upgrade | Supported |
| Certifications/Compliance | |
| Certifications/Compliance | Certifications EC/EN 62368CEUKCAFCCVCCIRoHSREACHBluetooth® BQBTELEC (Japan)Microsoft® WHQLCompliances ISO14443ISO 7816USB CCIDPC/SCWEEE |
| Device Driver Operating System Support | |
| Device Driver Operating System Support | USB and Bluetooth HID mode Windows®Linux®macOS® 10.7 or aboveAndroid™ 4.3 or aboveiOS 12.0 or aboveiPadOS 16.0 or aboveBluetooth Android™ 4.3 or aboveiOS 12.0 or aboveiPadOS 16.0 or above |
Frequently Asked Questions (FAQs)
Q: What types of cards and tags does the ACR1555U support?
A: The ACR1555U supports ISO 14443 Type A and B, MIFARE, FeliCa, and most nfc tags which will be compatible with these standards.
Q: Can I use this with my smartphone?
A: Yes, the reader is compatible with both android and ios smartphones and tablets, utilizing its Bluetooth connectivity.
Q: Does the reader come with a software development kit?
A: Yes, an sdk is available to facilitate the development of custom applications.
Q: How long does the battery last?
A: The rechargeable battery provides hours of use, dependent on usage, and recharges quickly via usb.
Q: Can the reader function as a keyboard emulator?
A: Yes, the reader can emulate a usb keyboard, simplifying data input.
Q: Is the ACR1555U nfc forum certified?
A: Yes, the reader is certified by the nfc forum, ensuring interoperability and reliability.
