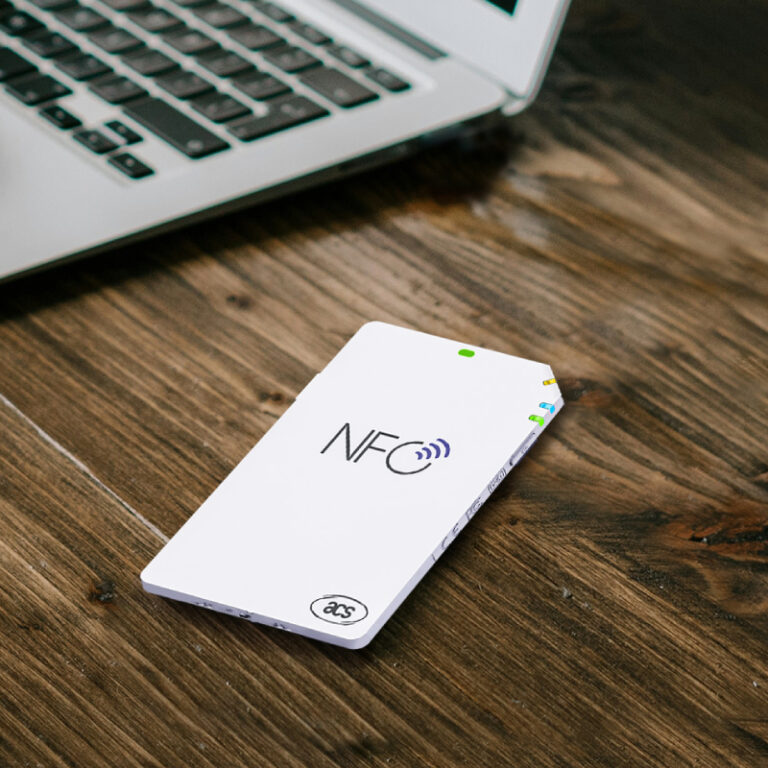

ACR1555U Secure Bluetooth® RFID NFC Reader Writer
The ACR1555U is a compact NFC reader with secure Bluetooth® connectivity, ideal for mobile transactions and access control.
The ACR1552U USB NFC Reader IV represents a cutting-edge smart card reader, meticulously crafted to align with CCID & PC/SC standards and utilizing the advanced 13.56MHz contactless technology. This reader boasts a plug-and-play convenience, high-speed communication reaching up to 848 kbps, and includes a built-in SAM slot to ensure enhanced security for contactless transactions through key diversification and mutual authentication.
Technical Spec
| Physical Characteristics | |
|---|---|
| Dimensions (mm) | 93 mm (L) × 58 mm (W) × 6 mm (H)94.1 mm x 60.2mm x 9.0 mm (with Card Holder) |
| Weight (g) | 31.5 g ± 1.0 g (Card Reader)39.7 g ± 1.0 g (with Card holder)23.9 g ± 5.0 g (USB cable) |
| Bluetooth Interface | |
| Protocol | Bluetooth® (Bluetooth Low Energy / Bluetooth 5.2)Bluetooth AES-128 encryption |
| Speed | 1 Mbps and 2 Mbps |
| USB Interface | |
| Protocol | USB CCID |
| Connector Type | USB Type-C |
| Power Source | Rechargeable Lithium-ion Battery (charging through USB) |
| Speed | USB Full Speed (12 Mbps) |
| Cable Length | 1m, Detachable |
| Contactless Smart Card Interface | |
| Standard | ISO 18092 NFCISO 14443 Type A & BISO 15693, MIFARE®FeliCa |
| Protocol | ISO 14443-4 Compliant Card, T=CLMIFARE® Classic Card, T=CLISO 15693 ISO 18092FeliCa |
| SAM Card Interface | |
| Number of Slots | 1 |
| Standard | ISO 7816 Class A, B and C (5V, 3V, 1.8V) |
| Protocol | T=0; T=1 |
| Built-in Peripherals | |
| LED | Bi-colors LED ( Red and Green) x 1, Blue LED x 1 and Orange LED x 1 |
| Buzzer | Monotone |
| Other Features | |
| Other Features | Other NFC Features:Smart Card Reader/WriterKeyboard EmulationCard Emulation |
| Firmware Upgrade | Supported |
| Certifications/Compliance | |
| Certifications/Compliance | Standards Bluetooth® BQBUSB CCIDPC/SCMicrosoft® WHQLJ-LISRegulatory / Environmental CEFCCIEC/EN 62368MICTELECUKCAVCCIRoHSREACHWEEE |
| Device Driver Operating System Support | |
| Device Driver Operating System Support | USB and Bluetooth HID mode Windows®Linux®macOS® 10.7 or aboveAndroid™ 4.3 or aboveiOS 12.0 or aboveiPadOS 16.0 or aboveBluetooth Android™ 4.3 or aboveiOS 12.0 or aboveiPadOS 16.0 or above |
Frequently Asked Questions (FAQs)
Q: Is the WalletMate Mobile Wallet NFC Reader compatible with both iOS and Android devices?
A: Yes, the WalletMate reader is designed to work on both iOS and Android platforms, providing a seamless experience across different devices.
Q: Can I use the ACR1555U for contactless payments?
A: Absolutely! The ACR1555U supports contactless payment systems and ensures secure transactions.
Q: How long does the battery last?
A: The rechargeable battery provides up to 8 hours of continuous use on a single charge.
