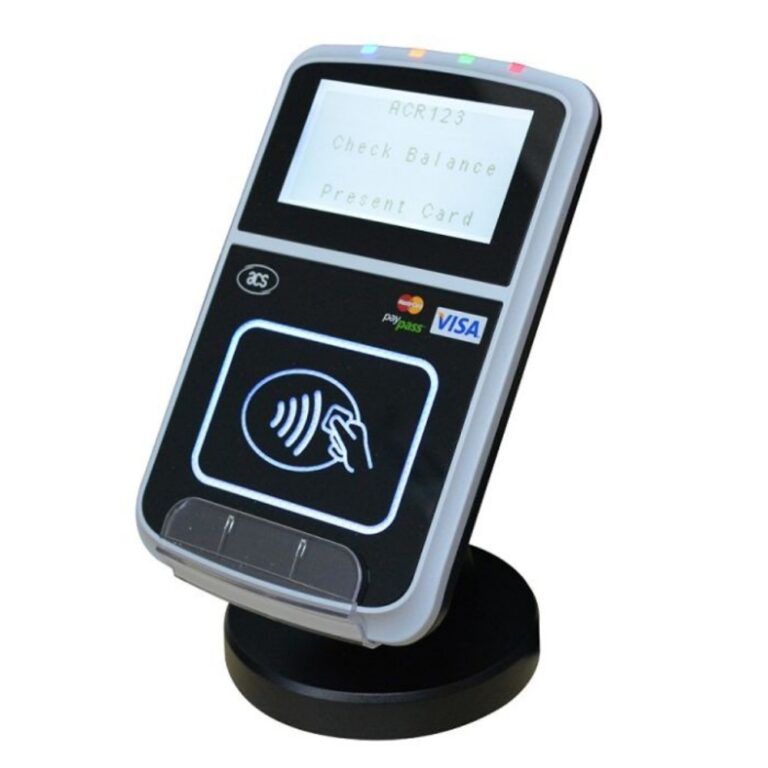

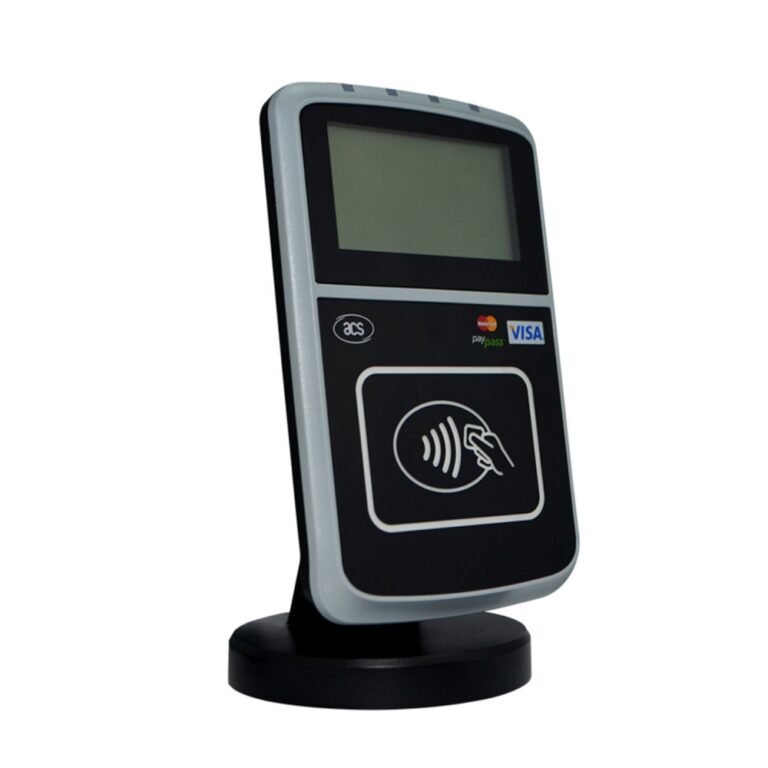

ACR123U RFID NFC READER WRITER
ACR123U RFID NFC READER contactless reader for fast, secure transactions. Supports NFC & RFID tags. Ideal for payment & access control.

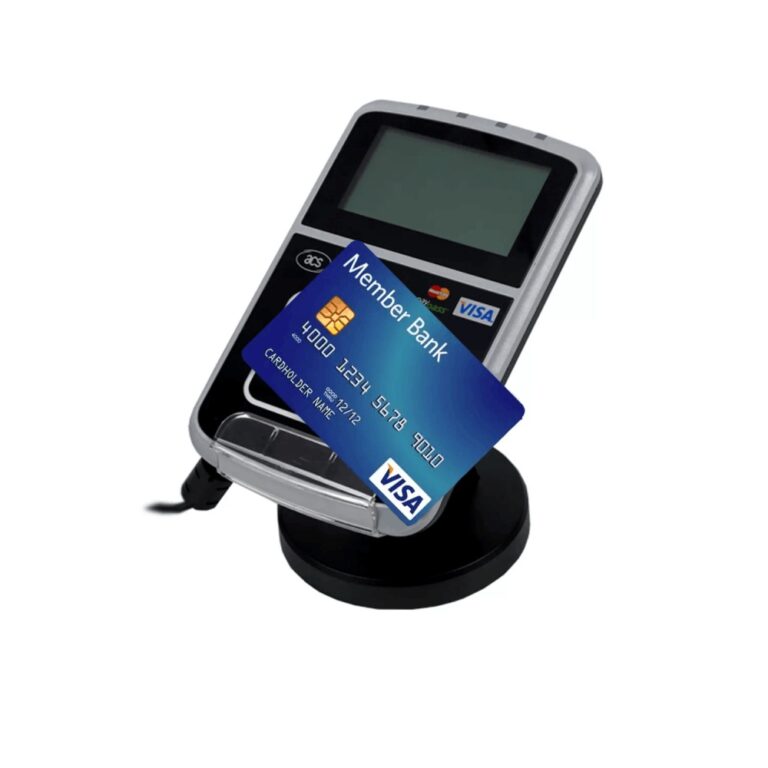

The ACR123U, the USB iteration of the ACR123S, offers a cost-effective and adaptable solution for businesses seeking to implement a cashless payment system. This smart reader can be effortlessly integrated into existing POS terminals and cash registers, significantly speeding up the checkout process. Customers can now pay with a simple tap of their contactless cards, thanks the ACR123U’s large, backlit tapping area.
Equipped with an expansive graphical LCD, the ACR123U allows merchants to display personalized messages to their customers, enhancing the overall shopping experience. The reader is built on 13.56 MHz RFID technology and is fully compatible with any contactless card that follows the ISO 14443-4 standard. With its user-friendly design and advanced features, the ACR123U is set to revolutionize point-of-sale interactions.
Technical Specifications
| Physical Characteristics | |
|---|---|
| Dimensions (mm) | Main Body: 159.0 mm (L) x 100.0 mm (W) x 21.0 mm (H) With Stand: 177.4 mm (L) x 100.0 mm (W) x 94.5 mm (H) |
| Weight (g) | Main Body: 281 g With Stand: 506 g |
| USB Interface | |
| Connector Type | Standard Type A |
| Protocol | USB CCID |
| Speed | USB Full Speed (12 Mbps) |
| Power Source | From USB Port |
| Cable Length | 1.5 m, Fixed |
| Contactless Smart Card Interface | |
| Standard | ISO 14443 A & B Parts 1-4 |
| Protocol | ISO 14443-4 Compliant Card, T=CL MIFARE® Classic Card, T=CL |
| SAM Card Interface | |
| Number of Slots | 3 Standard SIM-sized Card Slots |
| Standard | ISO 7816 Class A, B, C (5 V, 3 V, 1.8 V) |
| Protocol | T=0; T=1 |
| Built-in Peripherals | |
| LCD | Graphical LCD with White Backlight Resolution : 128 x 64 pixels Number of Characters: 16 characters x 8 lines |
| LED | 4 single-color: Blue, Yellow, Green and Red |
| Tapping Region | Tri-color backlight: Red, Green and Blue |
| Speaker | Audio Tone Indication |
| Other Features | |
| Security | Tamper Switch (Internal anti-intrusion detections and protection) |
| Firmware Upgrade | Supported |
| Real-time Clock | Supported |
| Certifications/Compliance | |
| Certifications/Compliance | ISO 14443 ISO 7816 (SAM Slot) USB Full Speed PC/SC CCID VCCI (Japan) KC (Korea) Microsoft® WHQL CE FCC RoHS 2 REACH |
| Device Driver Operating System Support | |
| Device Driver Operating System Support | Windows® CE Windows® Linux® Solaris |
Frequently Asked Questions (FAQs)
Q: What types of nfc cards are supported by the ACR123U?
A: The ACR123U supports Mifare and other ISO 14443 Type A & B compliant smart card types. This includes most nfc payment cards and rfid card formats. The 13.56 mhz contactless technology makes this device extremely compatible.
Q: Can I use the ACR123U with my existing POS system?
A: Yes, with its provided sdk, the ACR123U can be integrated into most point-of-sale systems. It provides uart and usb keyboard output which can integrate with many POS systems. It is compatible with any nfc device.
Q: Does the ACR123U support read and write functionality?
A: Yes, the ACR123U is a nfc reader writer allowing you to not only read nfc data but also write to nfc tags. The nfc tools can record standard information on various tags and cards as well as read them. The nfc tools can read most common nfc tag types.
