Long Zhi Xiang Tiancheng Science and Technology Park, Shenzhen

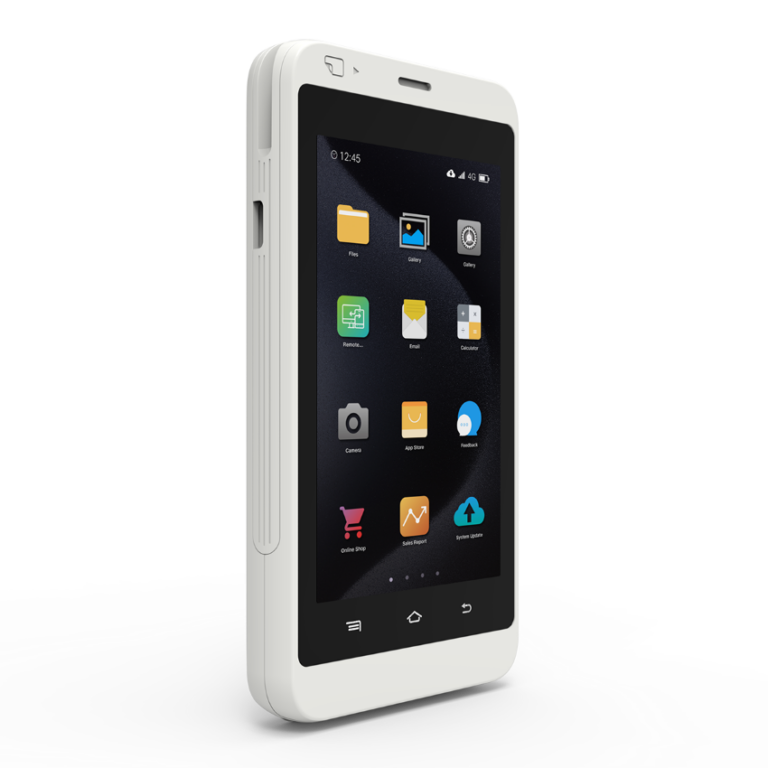

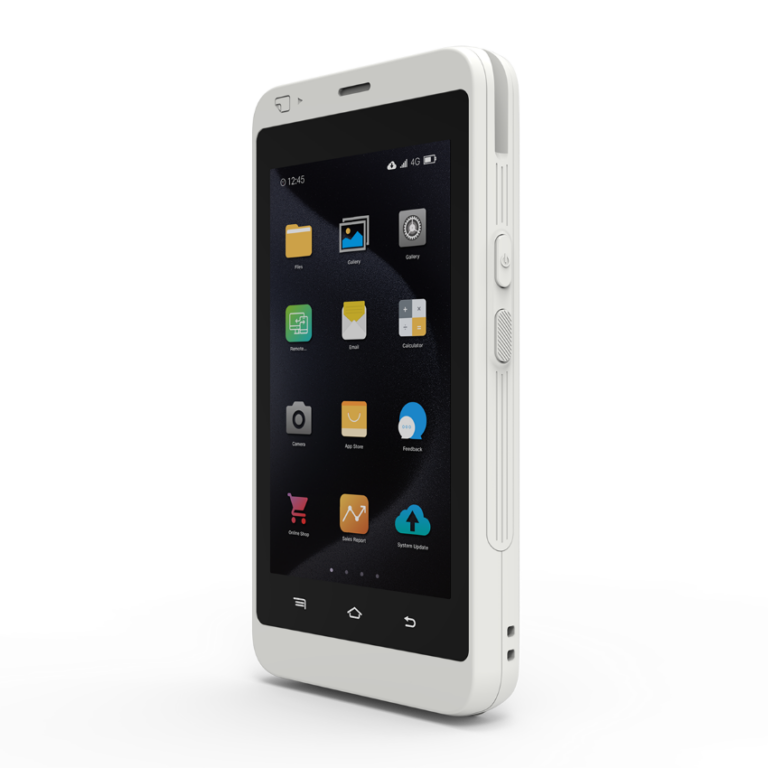

POS D20 Android Smart EMV POS Machine
Introducing our ergonomically designed Android Smart POS, crafted to fit comfortably in your hand. Featuring a 4-inch touchscreen and a built-in QR code scanner, this device enhances your payment experience with various connectivity options. With high performance and support for multiple connectivity modes—4G, 3G, 2G, Wi-Fi, and Bluetooth—this POS system ensures seamless transactions anywhere. It offers comprehensive payment capabilities, including magnetic stripe (MSR), EMV chip (IC), and NFC, making it a versatile choice for businesses seeking efficiency and convenience in payment processing.
Android Smart POS D20 Technical Specifications
| OS | Android 10 |
| Processor | Application CPU: 4*A53@ 1.8GHz Security CPU: 32-bit ARM 192MHz |
| Memory | 1GB + 16GB2GB + 16GB(Optional) |
| Display | 4.0” 480*800 TFT IPS DisplayTouch Screen display |
| Communications | LTE I WCDMA I GSMBluetooth 5.0 I WiFi: 802.11 a/b/g/n/ac, 2.4GHz&5G, Supports AP |
| Satellite Positioning | GPS | A-GPS | GLONASS |
| Camera | Rear: 0.3M FF pixels |
| EMV Card Reader | EMV L1&L2 |
| NFC Reader | EMV Contactless L1 |
| Magnetic Stripe Card Reader | ISO-7811/7813/7810 |
| Certifications | PCI PTS 5.x SREDEMV L1&L2, EMV Contactless L1Visa Paywave, MasterCard Paypass, Amex Expresspay Discovery D-PAS, Rupay qSPARCPCI PIN Security, MasterCard TQM CE, FCC, BQB, RoHS, WEEE |
| Adapter | DC 5V/1A |
| Battery | 4.35V/2450mAh |
| Audio | Speaker |
| Peripheral Ports | 1 Type-C (OTG)1 Nano SIM + 1 Mini SIM + 1 Mini SAM1 Micro SD Card Slot, Supports Up To 32 GB |
| Environmental Conditions | Operating temperature: 0℃to+45℃ Storage temperature: 0℃to+50℃Relative humidity: 10% to 90% non-condensing |
| Dimensions | 129mm x 68.5mm x 17.4mm, 168g(Including Battery) |
Frequently Asked Questions
1. What are the key features of the POS D20?
The POS D20 has an ergonomic design, 4-inch touchscreen, and QR code scanner, with multi-connectivity (4G, 3G, 2G, Wi-Fi, Bluetooth) for fast transactions.
2. What payment methods does it support?
It supports magnetic stripe (MSR), EMV chip (IC), and NFC payments.
3. Is it easy for staff to use?
Yes, its intuitive design allows for quick adoption, minimizing training time.
4. Why choose the POS D20?
As a TOP 5 POS manufacturer with 15 years of experience, we deliver high-quality, reliable solutions tailored to enhance your payment processing needs.
Please click here for more information!
